Re: Dales mid tiger 1

Post by John Fitzsimons » Thu May 10, 2012 11:01 am

Hi Dale, do you mean the two small brackets securing the bottom of the bin to the turret. My bin is the kit bin upgraded by Steve. The kit bin had these brackets.
If interested in any parts used in my builds contact me at johnfitzsimons@msn.com for a price list.
Items available. See link to forum post.
viewtopic.php?f=4&t=4770

User avatar
Tim Bowman
Posts: 1761
Joined: Fri Jul 13, 2007 4:53 am
Location: Northern California
Been Liked: 7 times
Contact:

Re: Dales mid tiger 1

Post by Tim Bowman » Thu May 10, 2012 3:44 pm

Hi Dale

Your bin looks great!

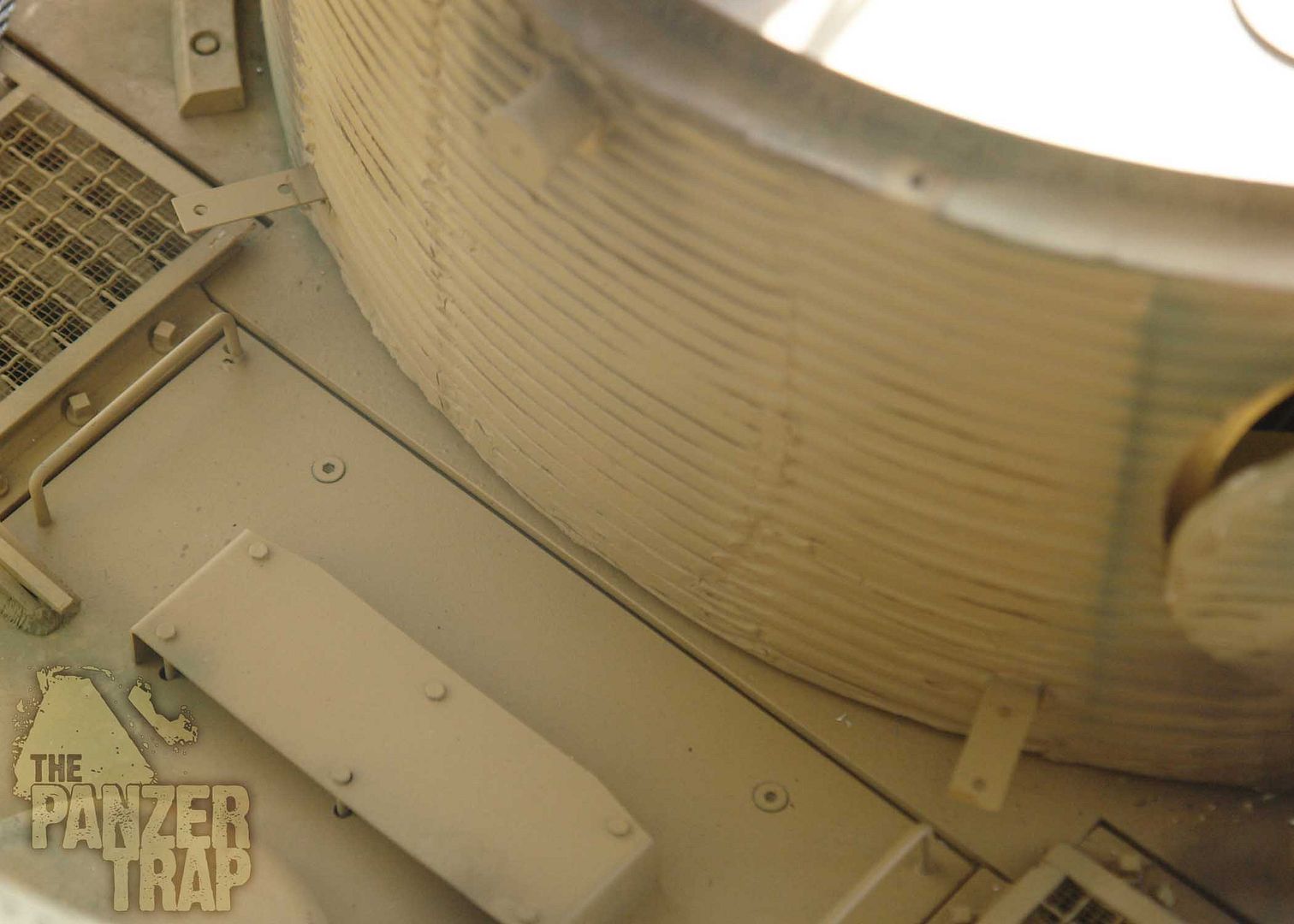

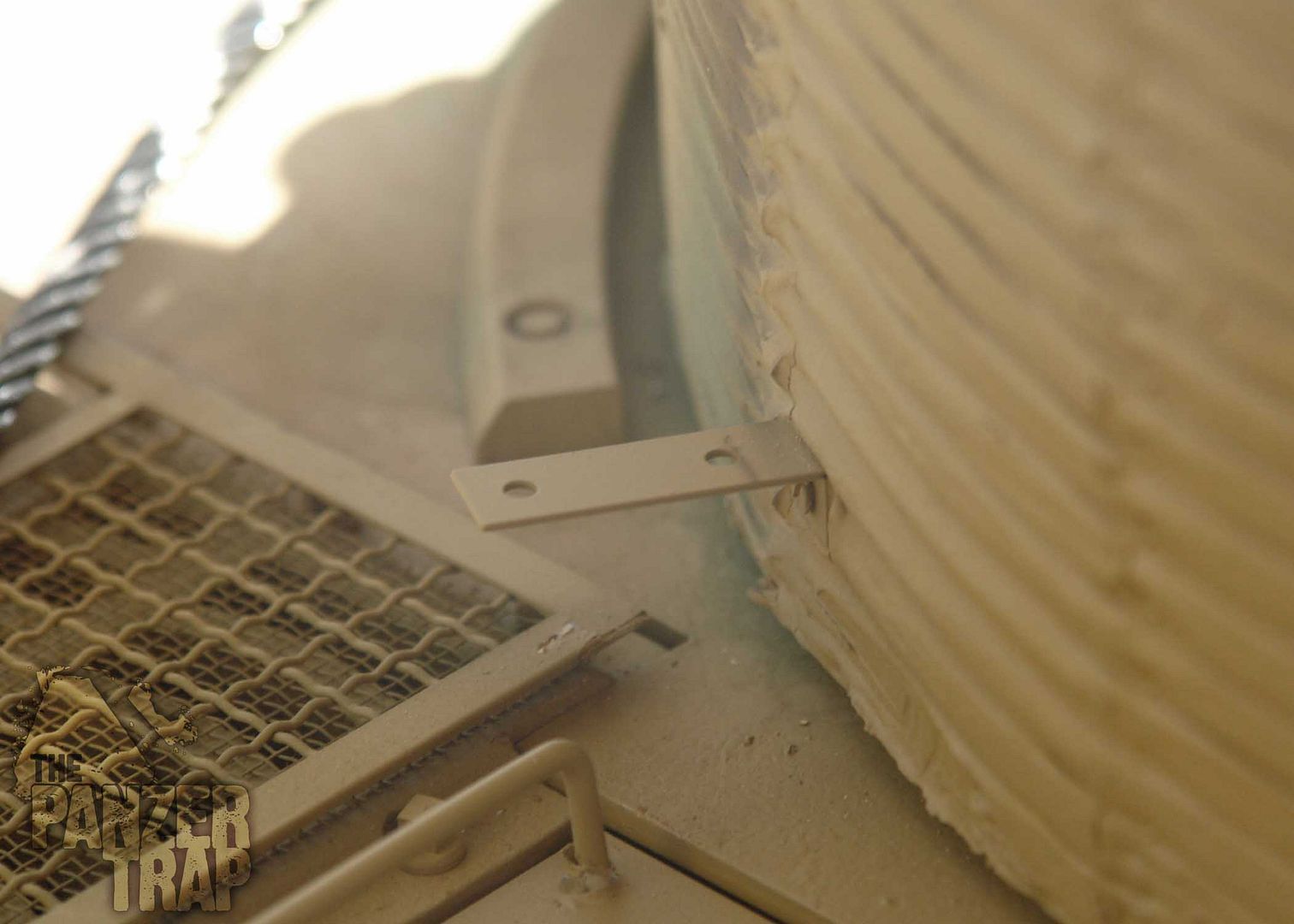

lower bracket detail. These are included with Mike Stannard's excellent bin and parts


kind regards
Tim
"So long as one isn't carrying one's head under one's arm, things aren't too bad." – Erwin Rommel

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Thu May 10, 2012 9:41 pm

Thanks Tim . That's what I was after well done I'll nock some up tonight ..Dale

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Sat Jul 14, 2012 12:18 pm

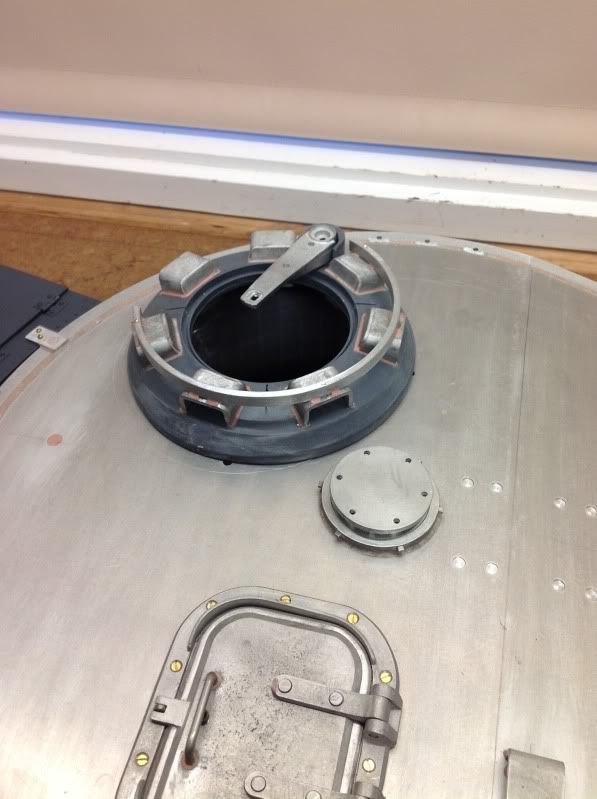

I've just about finished Mikes cupola all's going well . Turret bin turned out real nice ..Dale



simon_manning
Posts: 1608
Joined: Fri Nov 02, 2007 8:51 pm
Location: new forest,hampshire,u.k.
Been Liked: 465 times

Re: Dales mid tiger 1

Post by simon_manning » Sat Jul 14, 2012 5:24 pm

nice to see you on dale, the build is top notch as always, regards simon manning.

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Sat Jul 14, 2012 10:12 pm

Thanks Simon . Can some-one tell me if the Mid Tigers cupolas where welded to the turret roof or bolted ..Dale

User avatar
Kent Wiik
Posts: 398
Joined: Sat Dec 04, 2010 11:18 am
Location: Northern Sweden
Has liked: 6 times
Been Liked: 80 times

Re: Dales mid tiger 1

Post by Kent Wiik » Sat Jul 14, 2012 10:35 pm

Hi Dale,

Good to see your inspirational work again, keep the photos coming.
Dale jordan wrote:Thanks Simon . Can some-one tell me if the Mid Tigers cupolas where welded to the turret roof or bolted ..Dale
The Mid/Late Tiger I cupola was welded to the roof as can be seen here on the Kubinka Mid Tiger:


Please note the two-lined welding.
Can you create such my friend? :roll:
(Late Tigers with the thicker roof plate had one-lined weld but Mid with their thinner roof had two-lined)

Kind regards
Kent
It´s all in the details!

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Sat Jul 14, 2012 11:32 pm

Great photo Kent Thanks . I'll give it a go . One more question is the hatch fixed to the hatch hinge or does it spin around on the centre bolt Dale

phil fitzpatrick
Posts: 2020
Joined: Sat Dec 12, 2009 3:38 pm
Location: Sambourne uk

Re: Dales mid tiger 1

Post by phil fitzpatrick » Sun Jul 15, 2012 8:28 am

Very nice work on your Tiger Dale,nice to follow.
Re double welds.
Most double welds into a corner are usually 3 runs.
The first straight into the root,then the lower one on top,then the top run.
Cheers
Phil

User avatar
Kent Wiik
Posts: 398
Joined: Sat Dec 04, 2010 11:18 am
Location: Northern Sweden
Has liked: 6 times
Been Liked: 80 times

Re: Dales mid tiger 1

Post by Kent Wiik » Sun Jul 15, 2012 10:14 am

Hi Dale,

Don’t know for certain but my guess is it was fixed and didn’t spin as the Panther hatch didn’t.
Can’t see any point for it to spin but it is only my guess and that what I will make my own until new facts says otherwise.

Back to the welds...
Here is a drawing showing the later 7 prism cast cupola Late and Mid outfit to the roof.


Please note all of you making a Late Tiger I that the 40mm roof was machined out 15mm (2,5mm in 1/6) so those cupola shall look lower then the 25mm roof ones.

One learns something new every day and fun it is... :wink:

Kind regards
Kent
It´s all in the details!

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Fri Nov 09, 2012 8:50 am

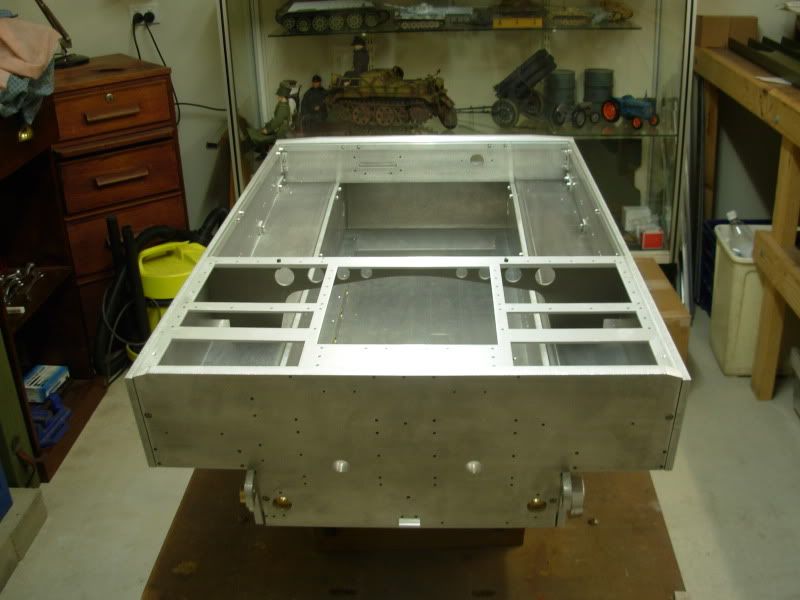

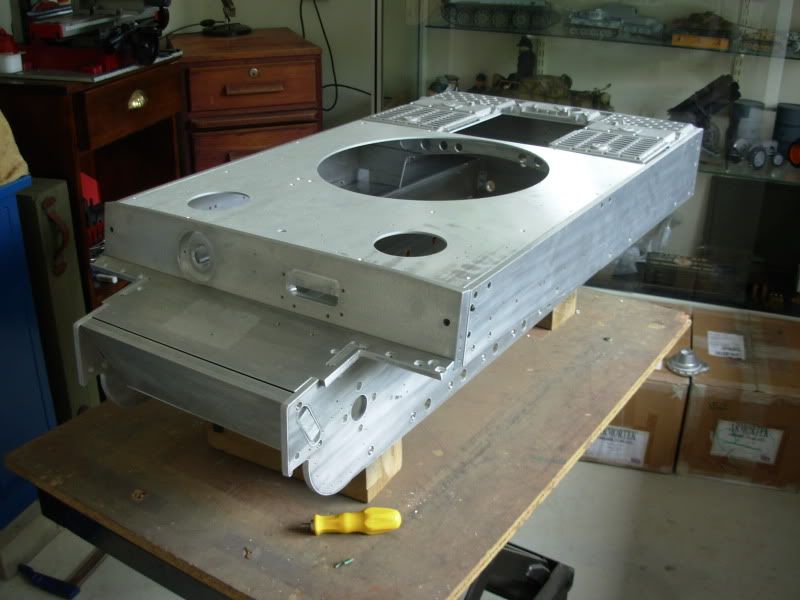

Today after a long brake from modelling I've got the hull together . This 2010 mid tiger1 kit , is a real nice model to put together ! The best fit of parts so far , and the quality of materials is top notch , good work Mark and Gill .. Dale




This is what I've been up to over the last 18 month working on my new 1.1 hobby 1944 GPW and 1943 bantam trailer which I've just finished a couple of weeks ago ..


Now I have some heavy metal to play with ..Dale

User avatar
Chang
Posts: 664
Joined: Mon Jul 21, 2008 1:45 am
Location: Sydney, Australia
Has liked: 5142 times
Been Liked: 61 times

Re: Dales mid tiger 1

Post by Chang » Fri Nov 09, 2012 4:32 pm

Welcome back Dale! Now you can tow your tank(s) ride on the trailer. :D
------------------------------------------------------------------
Es braust unser Panzer im Sturmwind dahin.....

simon_manning
Posts: 1608
Joined: Fri Nov 02, 2007 8:51 pm
Location: new forest,hampshire,u.k.
Been Liked: 465 times

Re: Dales mid tiger 1

Post by simon_manning » Fri Nov 09, 2012 11:10 pm

the jeep and trailer look very nice and so does the tiger, you might stray off for a while but the lure of the armortek kit brings you back, i have enjoyed all your builds in the past, so keep the posts coming, its good to see some sunshine in the back ground while its grim here, also is noel cleaning his brushes ready to tackle the tiger, best regards simon manning.

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Sat Nov 10, 2012 1:20 am

Thanks Simon . Yes Noel is on standby . How good would it be for you two to get together . Your paint job on your Jag is fantastic ... Dale

Dale jordan
Posts: 1259
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 42 times
Contact:

Re: Dales mid tiger 1

Post by Dale jordan » Sat Nov 10, 2012 8:23 pm

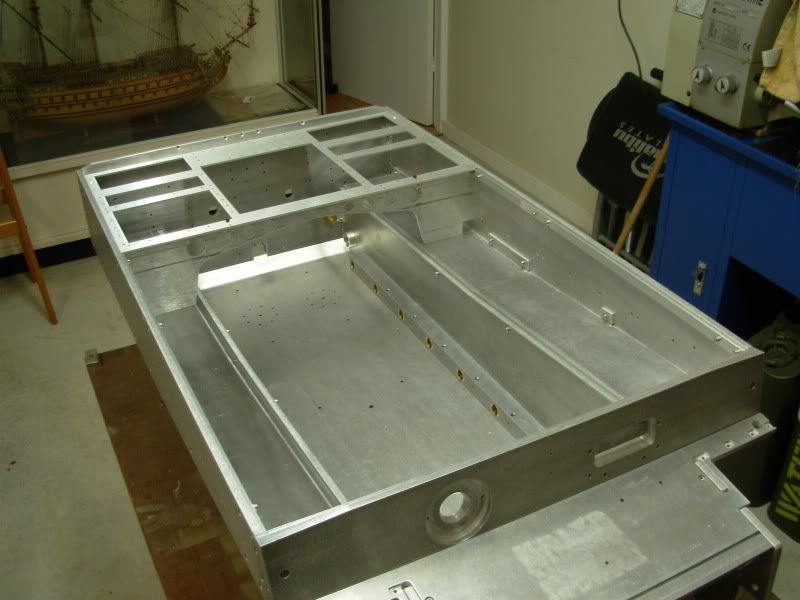

Today i've added a deck shelf around the sides and front to support the deck I'll add my deck locking device later like I did on my last tiger using the front vent to lock it in place . Dale

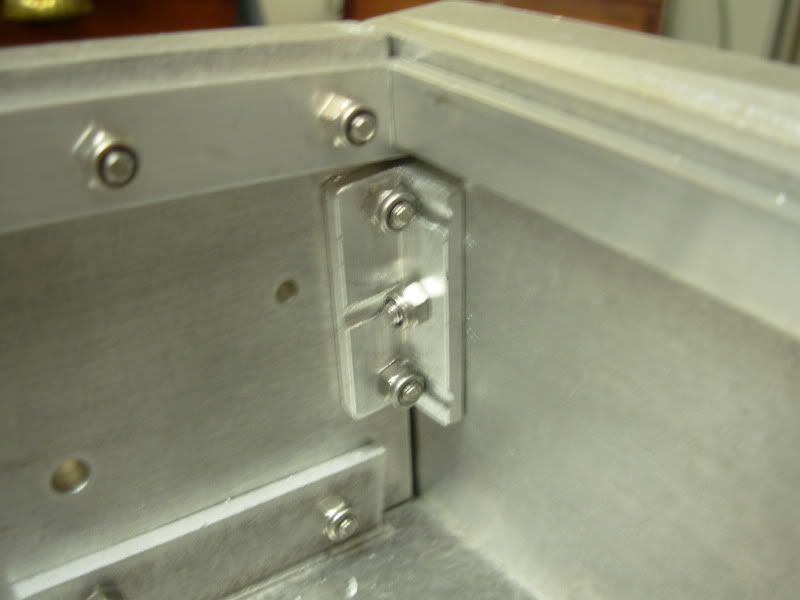

Here is a photo of my new angle brackets that i made up out of 3mmx12mm alloy angle note where I machined out a rebate for the nuts .
