Re: A 47 years old love

Post by Stephen White »

Frank, many, many congratulations. I've watched with huge admiration as you've mastered this complex design and I'm glad to have been able to help in a small way. Thankfully, the Tank Museum has two and two halves Meteor engines on display, to photograph and measure. You've done a great job and with your chain drive, there will be plenty of space for it and the ancillaries. Thanks for taking us all on this journey. Stephen

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
A little update
Regards
Frank


Stephen White
Site Admin
Posts: 2874
Joined: Sat Oct 11, 2008 7:05 pm
Location: Dorset
Has liked: 638 times
Been liked: 1407 times

Re: A 47 years old love

Post by Stephen White »

Lieber Frank, wirklich herrvorangende Verarbeitung. Ich gratuliere dich.

Vince Cutajar
Posts: 1745
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 394 times
Been liked: 1112 times

Re: A 47 years old love

Post by Vince Cutajar »

That looks awesome Frank.

Vince

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
Today a design update.
Regards
Frank


And mounted in the model.

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
The next step.
Regards
Frank



Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hedllo together

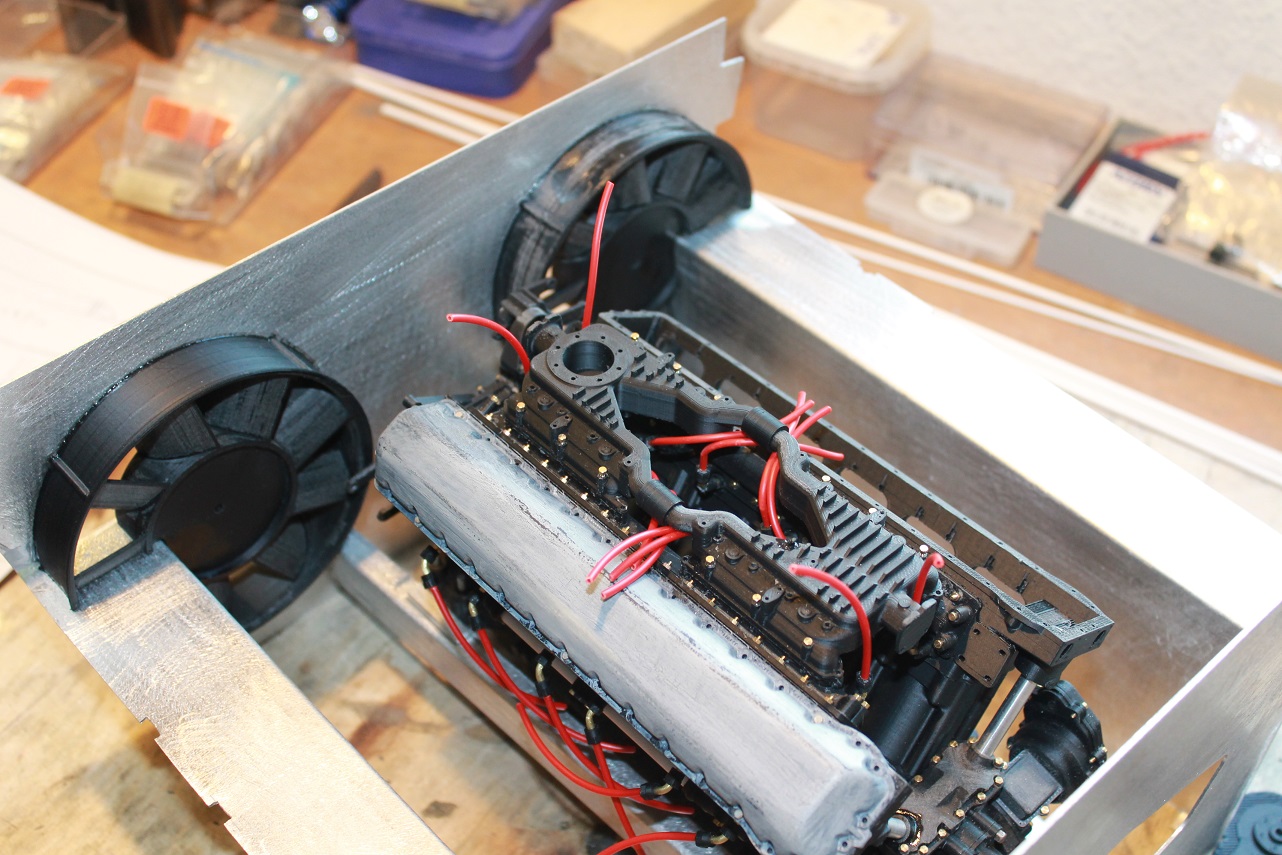

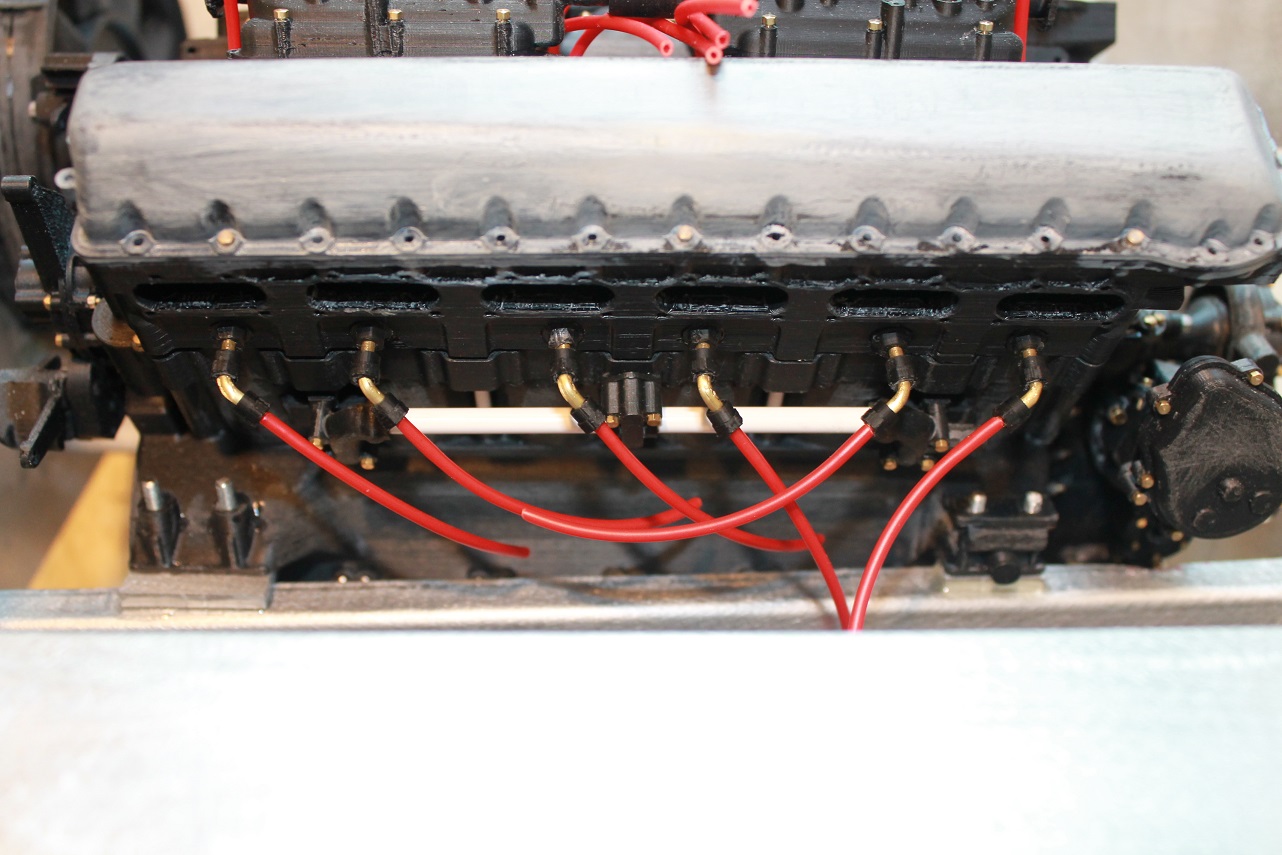

Today the massive fans and the 24 spark plug sockets.
Regards
Frank



Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
Now the fan drive.
Regards
FrankImage

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello togehter
At this place: Many thanks to Stephen for his excelent help!

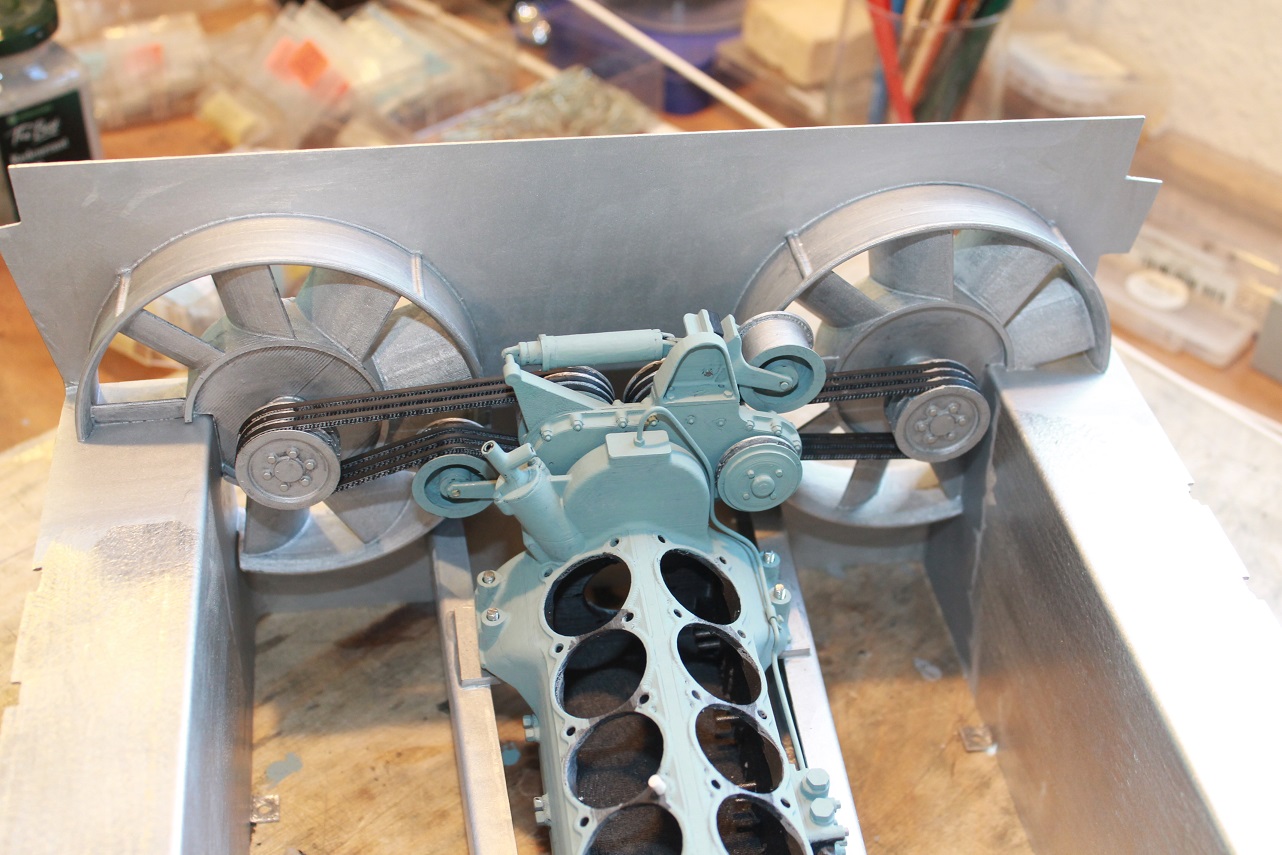

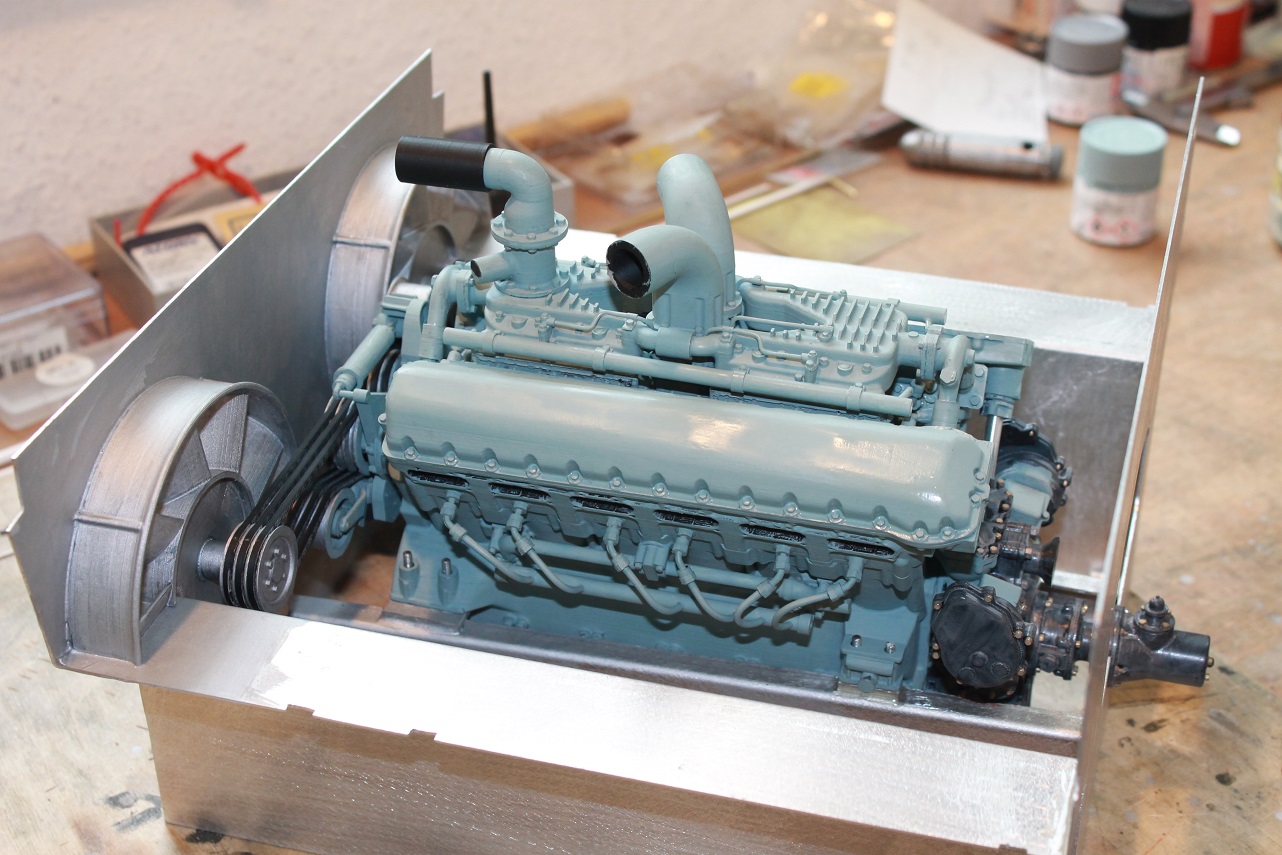

The fan belts. The belts are also printed.
Regards
Frank


Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
The last weekend I had designed the front pipes - very difficult.
Regards
Frank

Online
User avatar
Robert E Morey
Posts: 1951
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 24 times
Been liked: 305 times

Re: A 47 years old love

Post by Robert E Morey »

Impressive work Frank! The engine looks a little small when installed in the tank! Amazing CAD and printing work - I would have lost patience long ago. Great results.
Best regards,
Bob

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello Robert
Thank you for your kind feedback.

You are right,due to the RR Merlin basic design the RR Meteor is a very small engine. I believe that the first service was in the Comet.

Regards
Frank

Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
The next step: The carburetter system.
Regards
Frank


Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together
Now the next little step.
Hello Stephen: Many thanks for your sponsorship with pictures and the manual.
Regards
Frank


Frank Breitenbach
Posts: 206
Joined: Sun Feb 12, 2012 8:52 am
Location: Grafenau, Germany
Has liked: 40 times
Been liked: 496 times

Re: A 47 years old love

Post by Frank Breitenbach »

Hello together

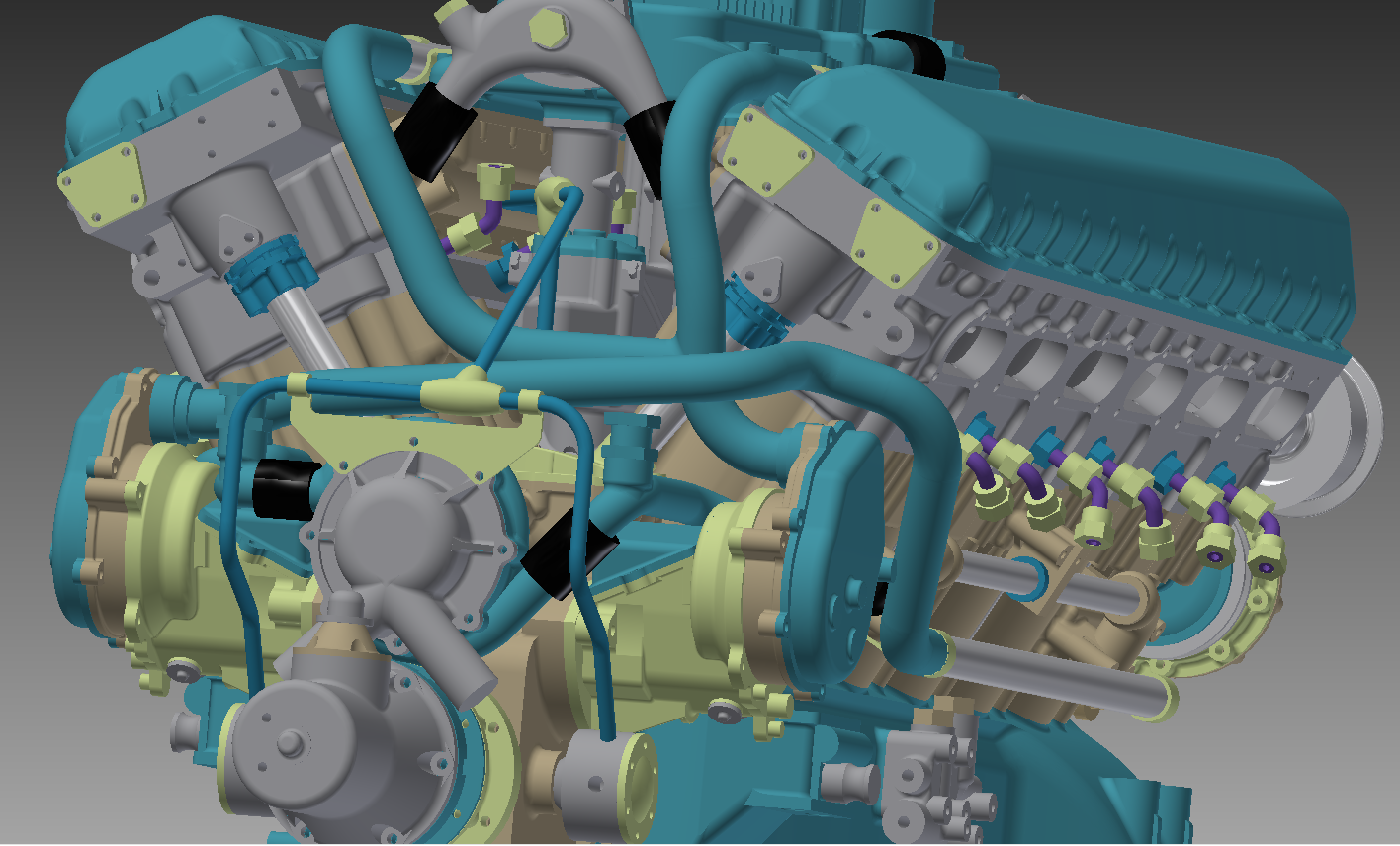

Today the water and ignition front pipes. They are all printed. Not really find, but I had not find another solution.
Regards
Frank
