Sarah Frazer
Posts: 201
Joined: Sat Oct 17, 2009 8:12 am
Location: Bristol

Post by Sarah Frazer » Wed Jul 07, 2010 9:39 am

Hi Guys,

Thanks :D, glad I can contribute something. I will be very interested in how Stephen will make the slots, as they are are the hardest thing to get right.


Sarah
'I reject your reality and substitute my own'

Sarah Frazer
Posts: 201
Joined: Sat Oct 17, 2009 8:12 am
Location: Bristol

Post by Sarah Frazer » Sun Jul 11, 2010 8:09 pm

Hi Guys,

Well the Lower Hull has now been painted in etch primer and put together, at last.......

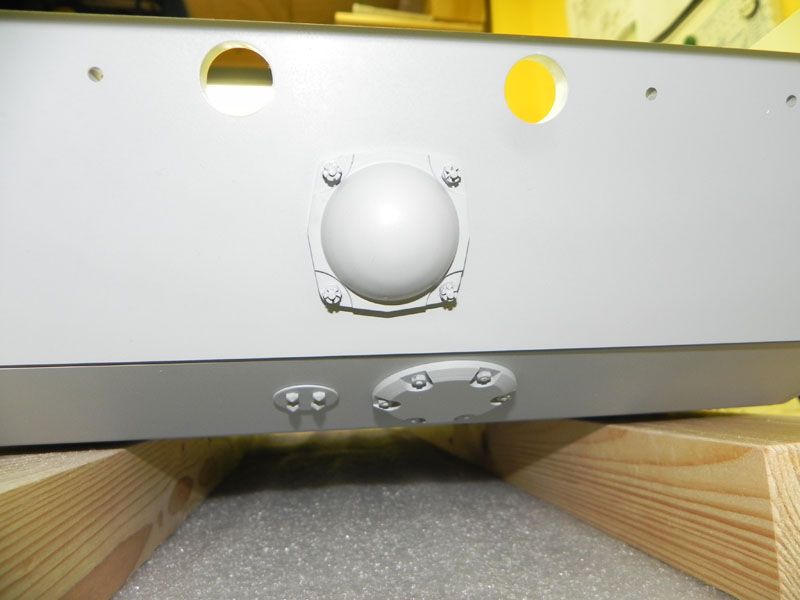

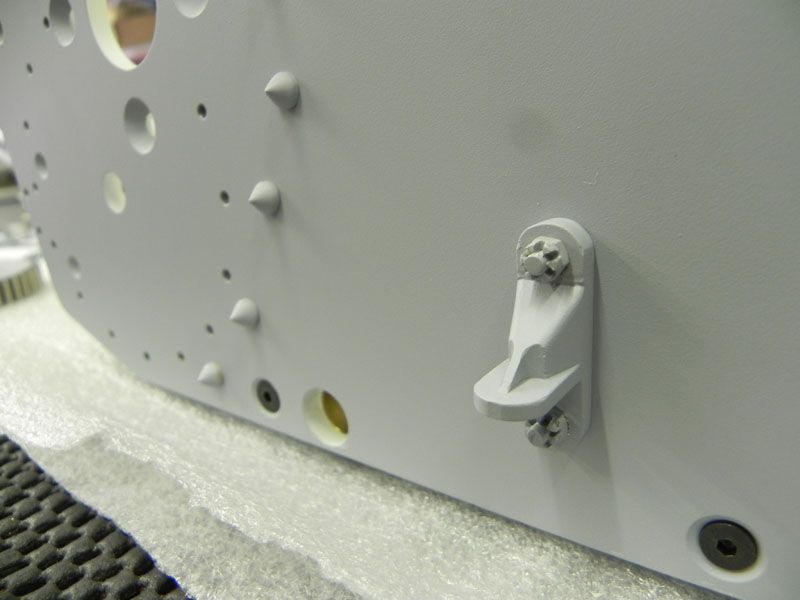

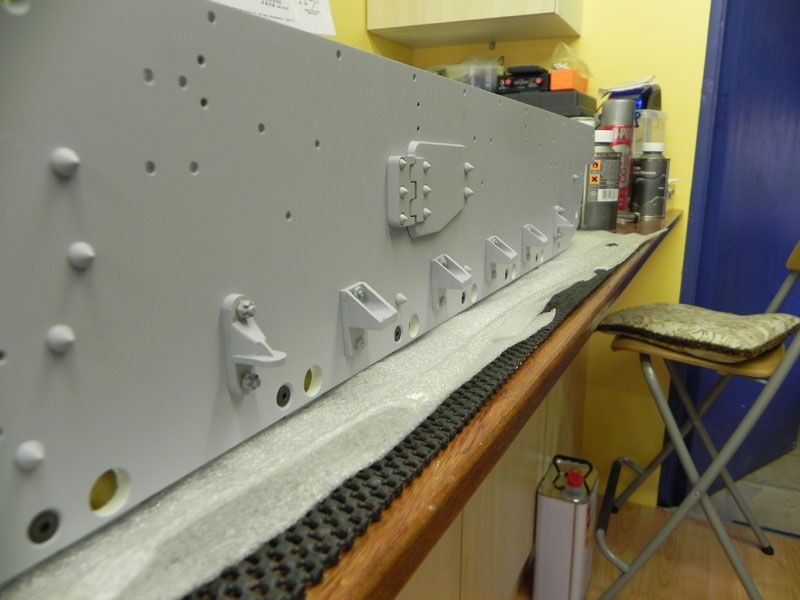

I've fitted the Cone Nuts on the Hull Sides where they should go, though I have noticed that Stephen has a few more on than mine.





The panel brackets still need a little fitting before they can have the fixing holes filled.

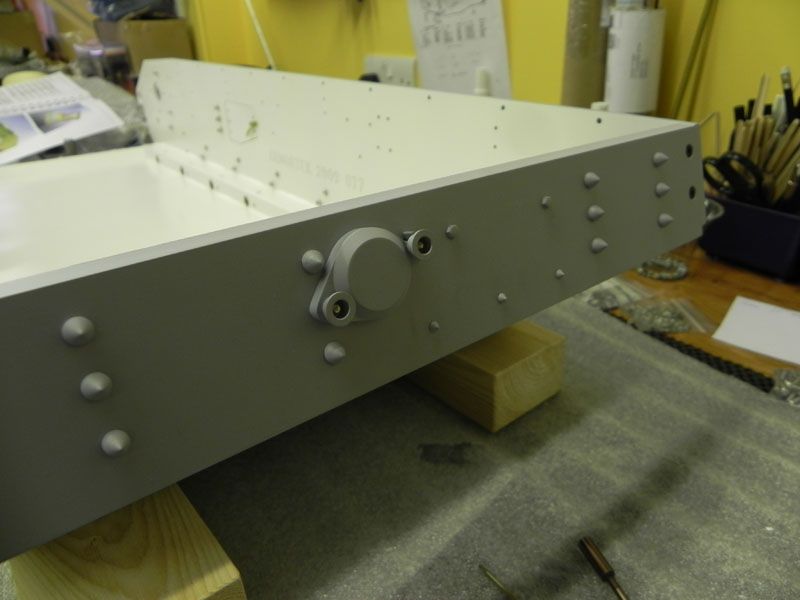

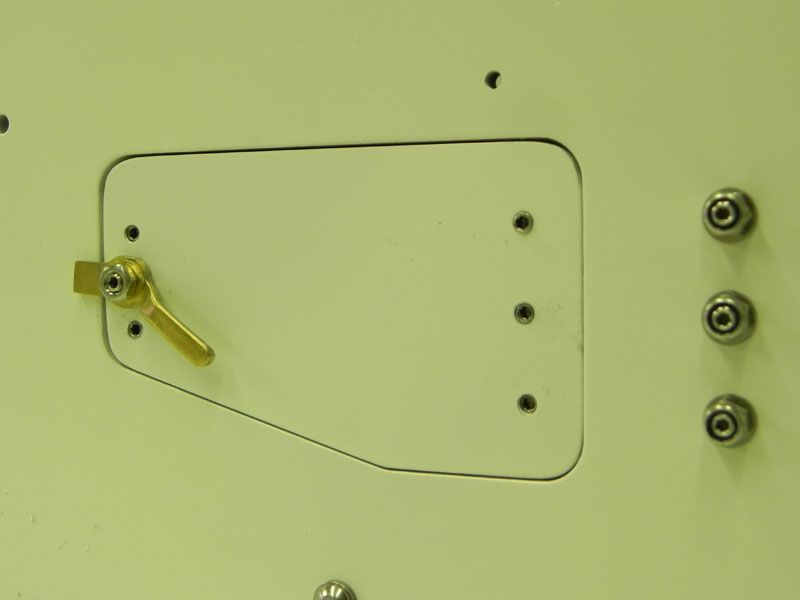

I'm pleased with the Starter Cover and as the thumb screws work, I'm wondering whether to put some detail behind it.

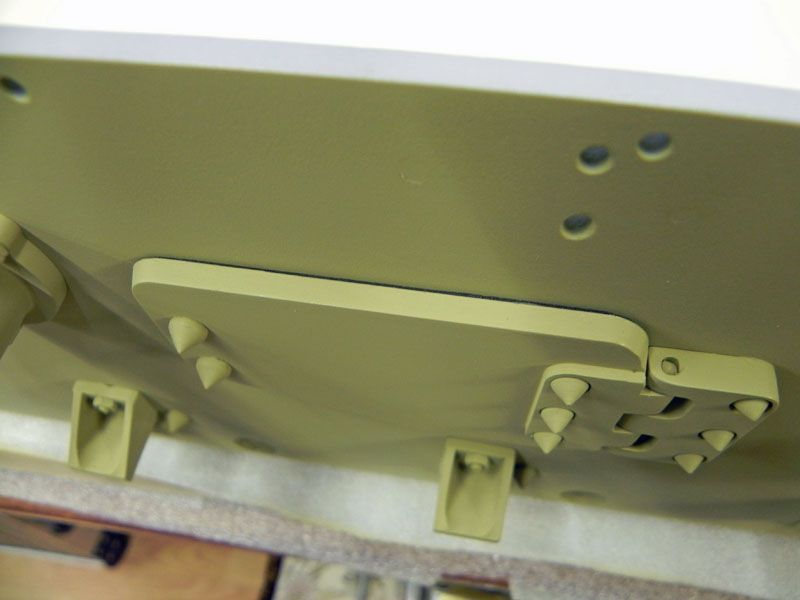

The Escape hatches fitted quite well, though I'm looking for some thin rubber to act as a gasket to stop any water getting through the gap.

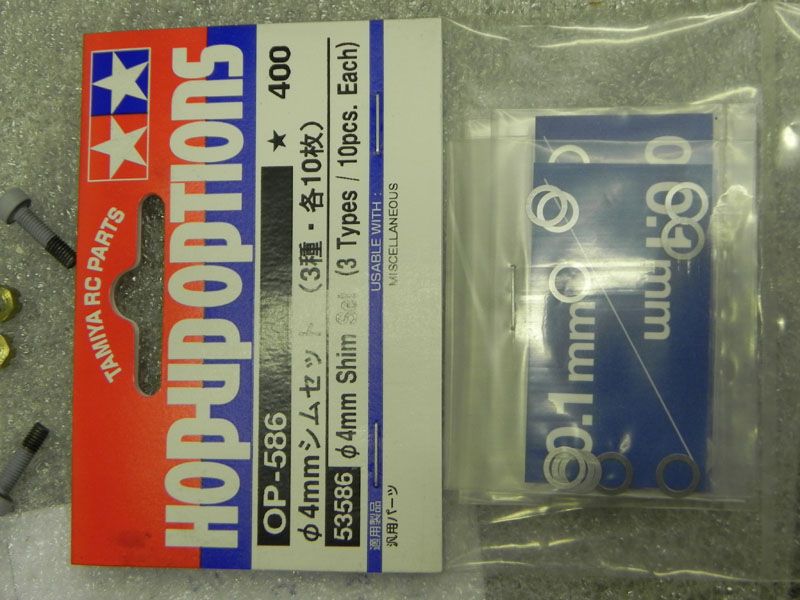

When the Return Roller housings were assembled I found I needed a spacer to stop them from binding. I used these 4mm shims, which worked out great, 0.4mm behind each retaining washer. The pack includes 0.1, 0.2 and 0.3 mm shims.



More later on.


Sarah
Last edited by Sarah Frazer on Sat Oct 24, 2015 12:37 am, edited 2 times in total.
'I reject your reality and substitute my own'

Sarah Frazer
Posts: 201
Joined: Sat Oct 17, 2009 8:12 am
Location: Bristol

Post by Sarah Frazer » Thu Aug 26, 2010 3:59 pm

Hi Guys,

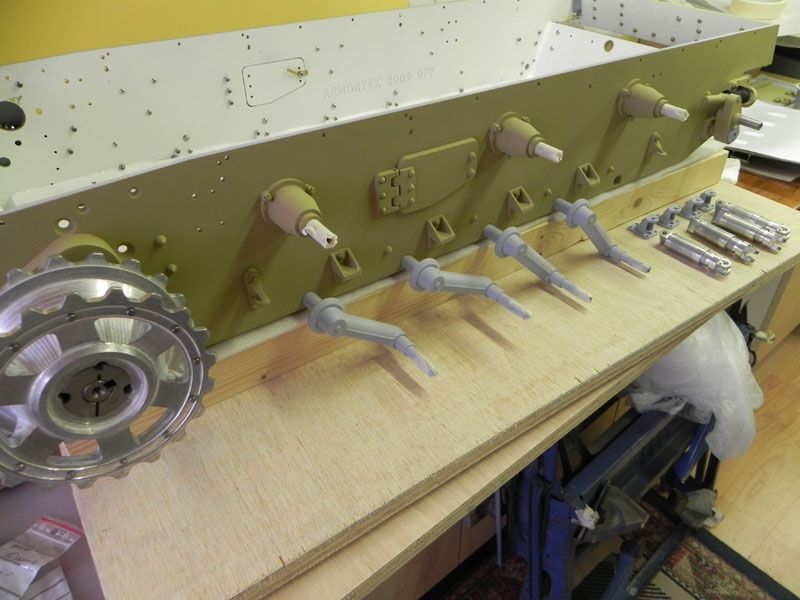

My Panzer III build has come on recently. I've managed to spray the hull in primer and it's base coat, along with quite a few other component parts.

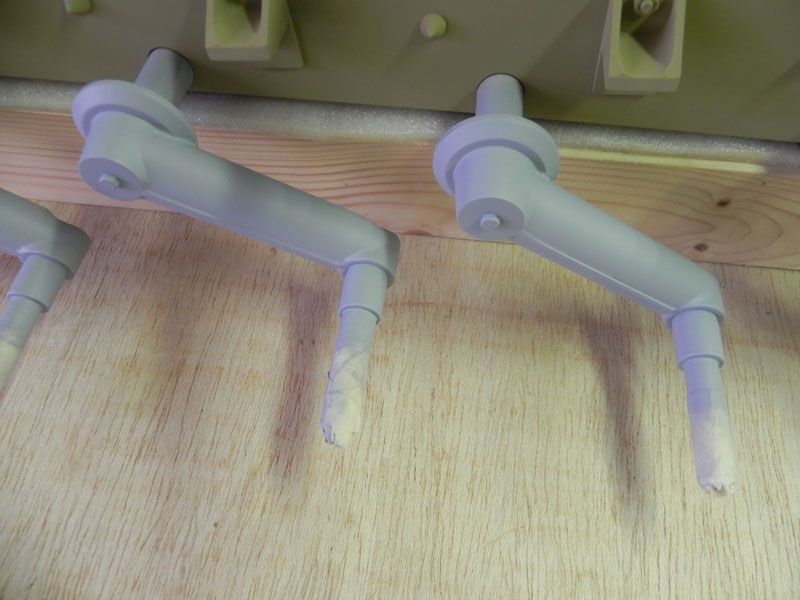

I've finally got round to add the strip along the front of the suspension arms, which represents the casting line, and also apply some primer as well.


I've also added small bolts to the suspension units, I still need to add the covers with the big 'O' to the front yet. The wide angle lens has distorted this picture a bit, the suspension units don't actually bend!

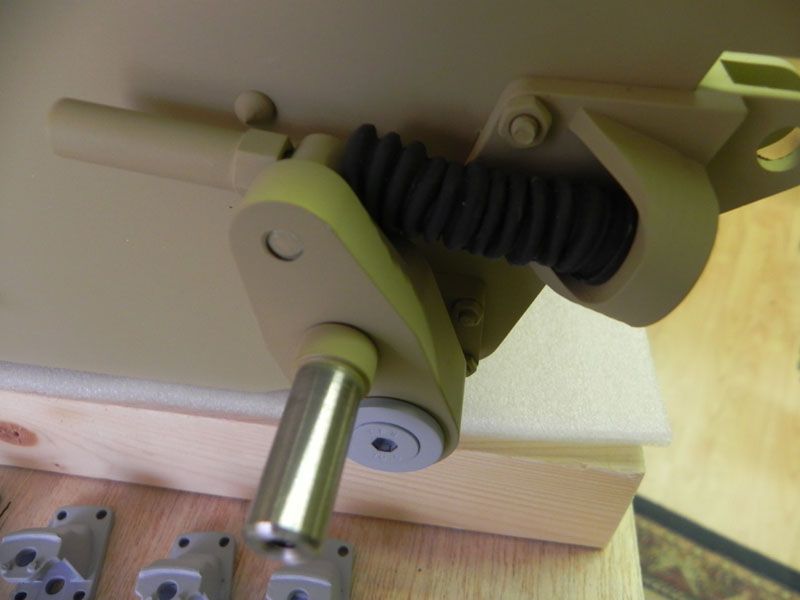

I managed to find some rubber gaiters to cover the idler adjusting bolt.


I also added a thin gasket to the side escape hatches.



More to come later
:D


Sarah
Last edited by Sarah Frazer on Sat Oct 24, 2015 12:43 am, edited 4 times in total.
'I reject your reality and substitute my own'

David Da Costa
Posts: 241
Joined: Wed Nov 25, 2009 4:51 pm
Location: California
Contact:

Post by David Da Costa » Thu Aug 26, 2010 4:10 pm

Looks great Sarah, a very clean build. Your suspension arms are excellent!.

Regards

David

Dale jordan
Posts: 1256
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been Liked: 1 time
Contact:

Post by Dale jordan » Thu Aug 26, 2010 9:59 pm

Well Done Sarah . All your hard work is paying off , The detail is spot on . How are you doing your fake welds ? . I love your suspension arms . Dale

Derek Attree
Posts: 1010
Joined: Thu Jul 12, 2007 12:44 pm
Location: london
Has liked: 45 times
Been Liked: 24 times

Post by Derek Attree » Fri Aug 27, 2010 8:08 am

Hi Sarah
That is a very nice looking job you have done
so far I think its one of the best I have seen.

Well done

Derek
we must stop making stupid predictions

Ian Rodney

Post by Ian Rodney » Fri Aug 27, 2010 10:38 am

Hi Sarah,

Great looking Panzer III coming along very nicely, I'm enjoying following your progress on above kit, super, keep the pics coming!

Cheers
Ian
from Glasgow, Scotland.

simon_manning
Posts: 1529
Joined: Fri Nov 02, 2007 8:51 pm
Location: new forest,hampshire,u.k.
Been Liked: 178 times

Post by simon_manning » Fri Aug 27, 2010 6:37 pm

very nicely done sarah,the details are great, regards simon manning.

User avatar
Adrian Harris
Posts: 3761
Joined: Thu Jul 12, 2007 10:46 pm
Location: Berkshire (UK)
Has liked: 161 times
Been Liked: 271 times

Post by Adrian Harris » Fri Aug 27, 2010 6:42 pm

The details are really adding to this tank :D

I've been trying to find a set of small gaiters for the linkage on my 222 but haven't been able to find any small enough :cry:

Adrian.

User avatar
Tim Bowman
Posts: 1756
Joined: Fri Jul 13, 2007 4:53 am
Location: Northern California
Been Liked: 2 times
Contact:

Post by Tim Bowman » Sun Aug 29, 2010 1:05 am

Hi Sarah

Excellent looking part. as others have already said, your swing arms are clean and perfect looking.

Look forward to your next post.

Kind regards
Tim
"So long as one isn't carrying one's head under one's arm, things aren't too bad." – Erwin Rommel

Sarah Frazer
Posts: 201
Joined: Sat Oct 17, 2009 8:12 am
Location: Bristol

Post by Sarah Frazer » Tue Aug 31, 2010 12:28 pm

Hi Guys,

Thanks for your king words :D It is easier for me as I can go off the excellent work that Stephen, Jeffrey and others have done. I am pleased with the results so far.

Hi Dale, I'm going to try a few different materials such as P-38 and Milliput. I've used P-38 to fill all the recessed joining holes, it was very good but it did go off very quick!

I got the gaiters from ebay, I think they are for a model boat. I did struggle to find anything slightly larger.

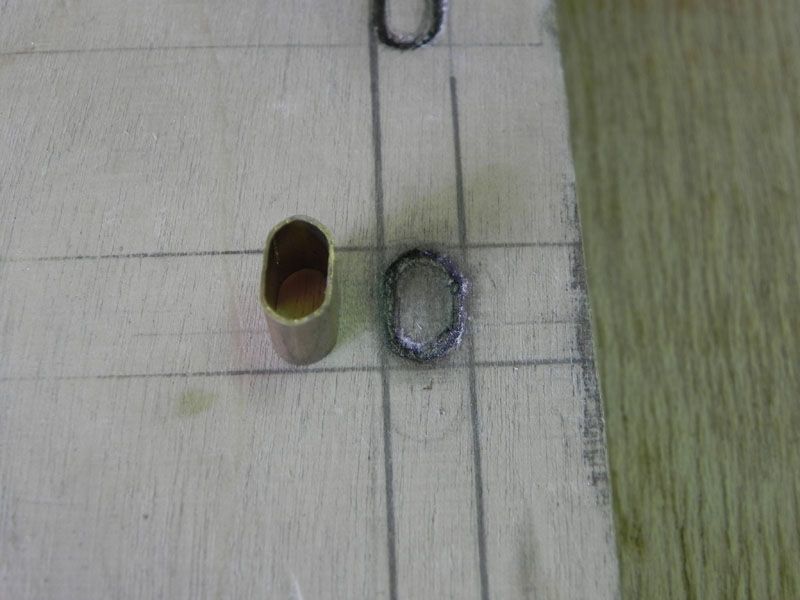

I did struggle with getting the embossed 'O' on the inspection plate on the suspension units. I eventually came up with a method which works reasonably well. Fist get some brass tube and shape it to for the correct profile. Then draw around the brass tube on a piece of wood, cutting a shallow recess into the surface:

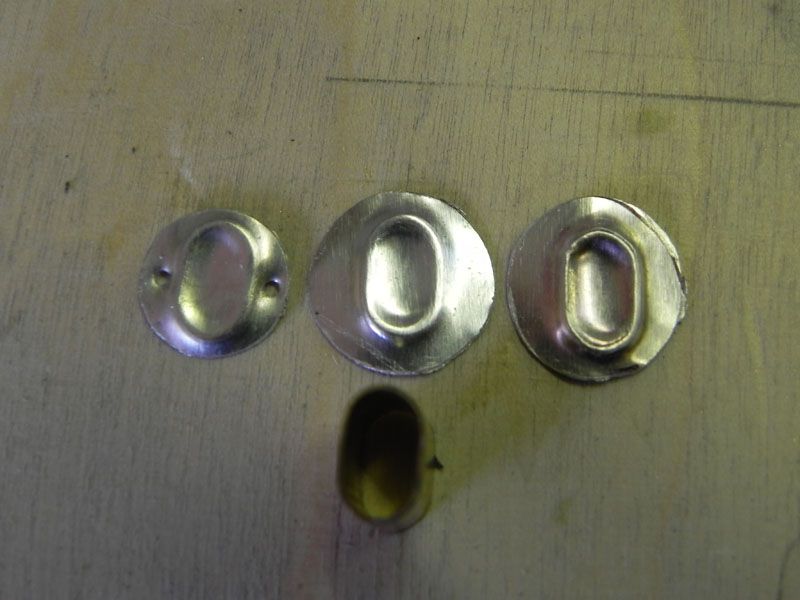

With a bit of aluminium sheet over the recess and using pencil marks to align the brass tube, tap it gently so the aluminium is shaped into the recess. A bit of trial and error is required to get the correct amount of embossing. The aluminium sheet needs to be oversize at this point, otherwise the material gets very distorted.

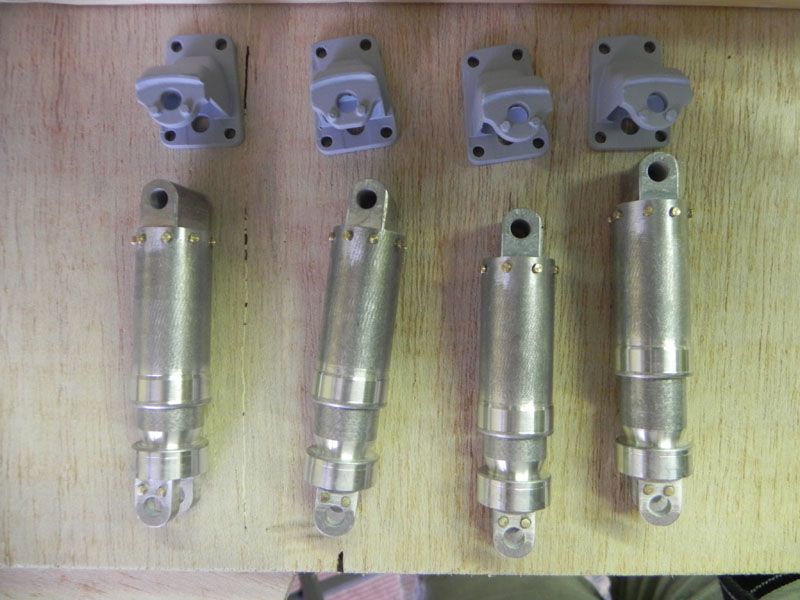

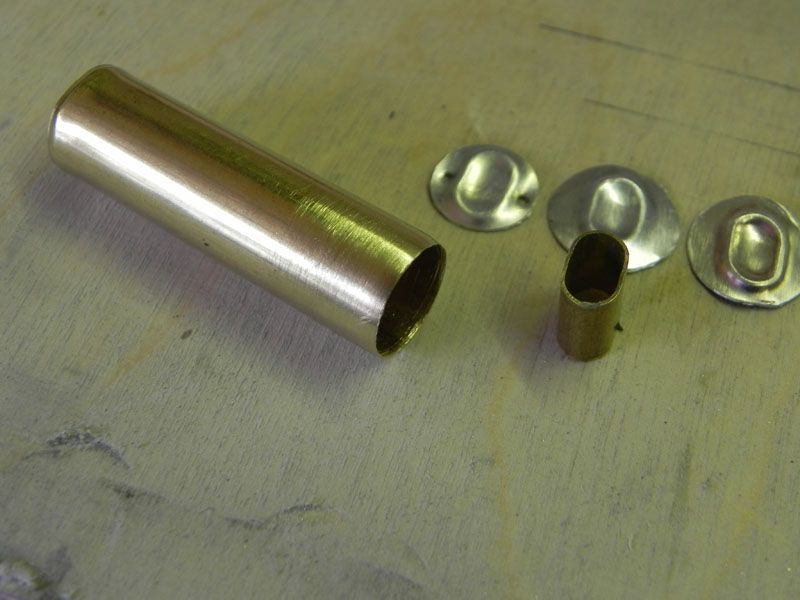

It might be best to make more pieces than you require and then select the most similar. The pieces shown in the photo below are all trial pieces, the best ones went on the shocks.


Cutting the inspection plate out with scissors proved a little difficult, so I sharpened up a larger diameter brass tube and used this to cut the inspection plate out.

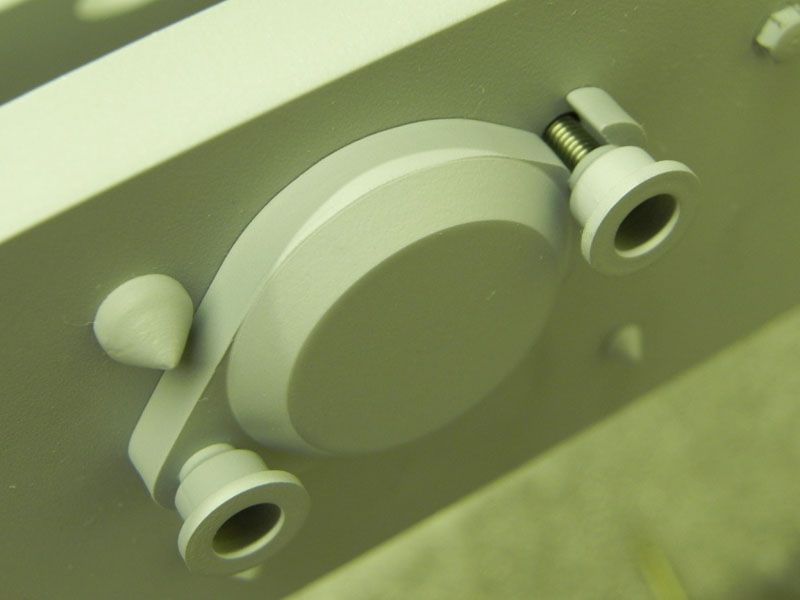

The inspection plate on the suspension unit:


I hope this is of some use.
